Tool Daily: The Great Brand for Pressure Washer Accessory Tool Daily are committed to developing more efficient and safer pressure washer accessory, helping people reducing the tiredness of spraying and cleaning in the garden. We are known for amazing pressure washer accessory, such as nozzle, wand, gun, coupler, foam cannon, chemical injector. Feature compatible pump part number 190593GS, 190635GS and 203640GS. 1/8’’ -27 male BSP thread. Made of brass Package List: 2 * Brass Barbs; 2 * Check Valve Balls; 2 * Springs; 4 * O-Rings. How to Replace 1. Follow soap hose to end and you'll find injector. Take off soap hose. 2. Use wrench to remove old injector. Clean out any gunk or dried soap in receptacle. 3. Make sure rubber o ring is on injector as pictured. Put ball bearing inside injector and then the spring with small end of spring against the ball bearing. 4. Insert injector into receptacle and tighten injector with 13mm wrench. Don't overtighten, you'll break the o ring or crack white metal on pump. 5. Put the soap hose back on. Compatible Below Pressure Washer Troy-Bilt pressure washer: 020200-0, 020207-0, 020207-1, 020208-0, 020208-1, 020213-0, 020240-0, 020240-2, 020241-0, 020242-0, 020242-2, 020242-4, 020245-0, 020245-1, 020245-2, 020292-3, 020293-0, 020293-1, 020294-0, 020295-0, 020296-0, 020316-2, 020337-0, 020316-0, 020316-1, 020381, 01903. Briggs and Stratton pressure washer: 020206-0, 020211-0, 020212-0, 020214-0, 020215-0, 020216-0, 020218-0, 020239-0, 020219-0, 020220-0, 020222-0, 020222-1, 020223-0, 020224-0, 020224-1, 020226-0, 020244-0, 020227-0, 020244-1, 020228-0, 020228-1, 020229-0, 020230-0. Siphon Hose and Filter for Chemical Injector Chemical Injector for Pressure Washer Foam Cannon 2L Oriffice 1.25mm 90 Inch Pressure Washer Extension Wand Pressure Washer Adapter Set 5 Pressure Washer Nozzle Add to Cart Buying Options Buying Options Add to Cart Add to Cart Buying Options Customer Reviews 4.6 out of 5 stars 445 4.0 out of 5 stars 262 4.4 out of 5 stars 3,487 4.4 out of 5 stars 2,117 4.5 out of 5 stars 1,334 4.7 out of 5 stars 7,587 Price $9.99$9.99 — no data $24.29$24.29 $23.99$23.99 $19.99$19.99 $6.28$6.28 Specification 10 FT 3/8'' Quick Connect Additional Orifice 1.1mm Nozzle 1/4" Quick Connect or M22 M22, 3/4'' 1/4"
Pressure Washer Soap Injector Kit, compatible Pump 190593GS, 190635GS and 203640GS. Please identify the part number of pressure washer pump, then check if it fits your pressure washer.

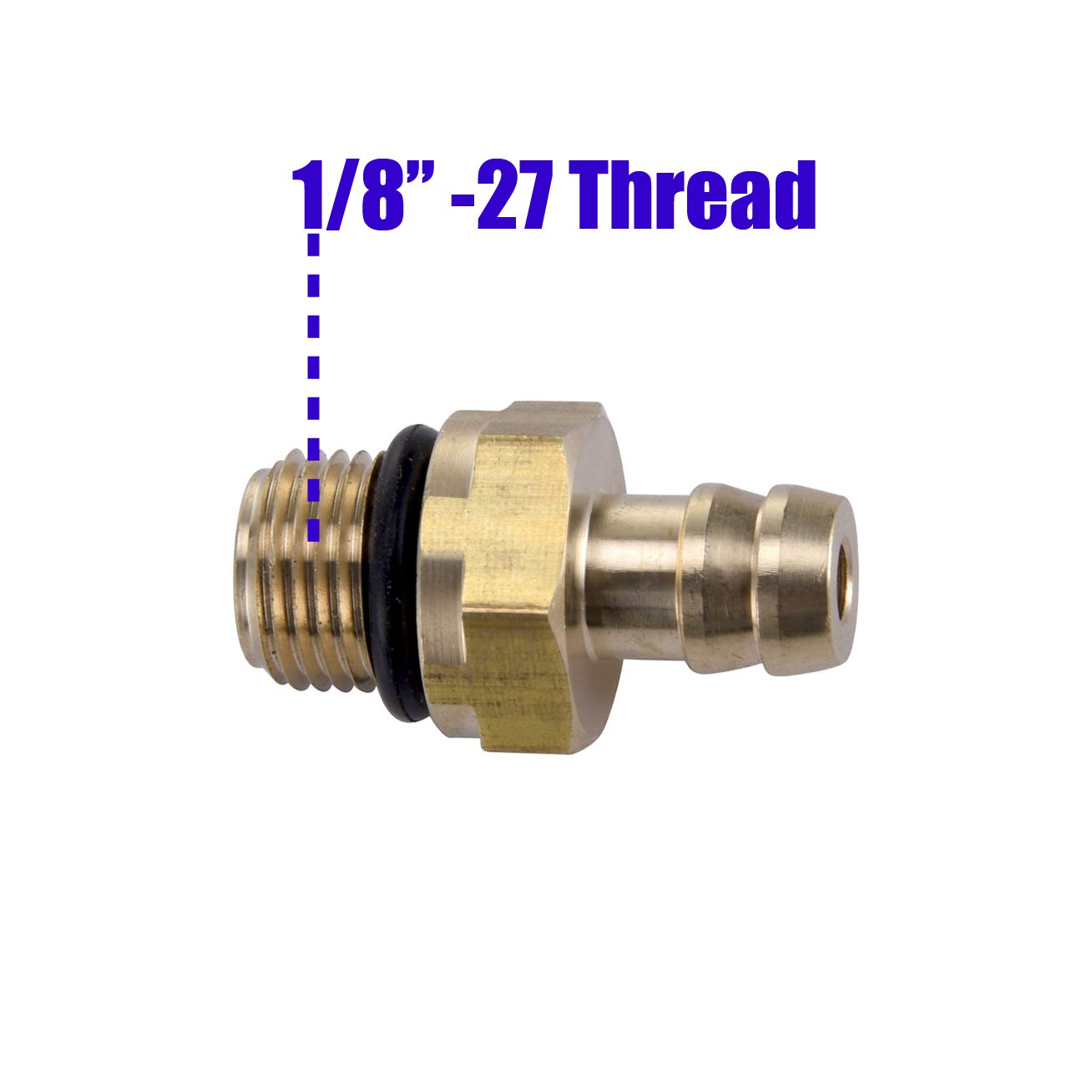

1/8’’ -27 male BSP thread.

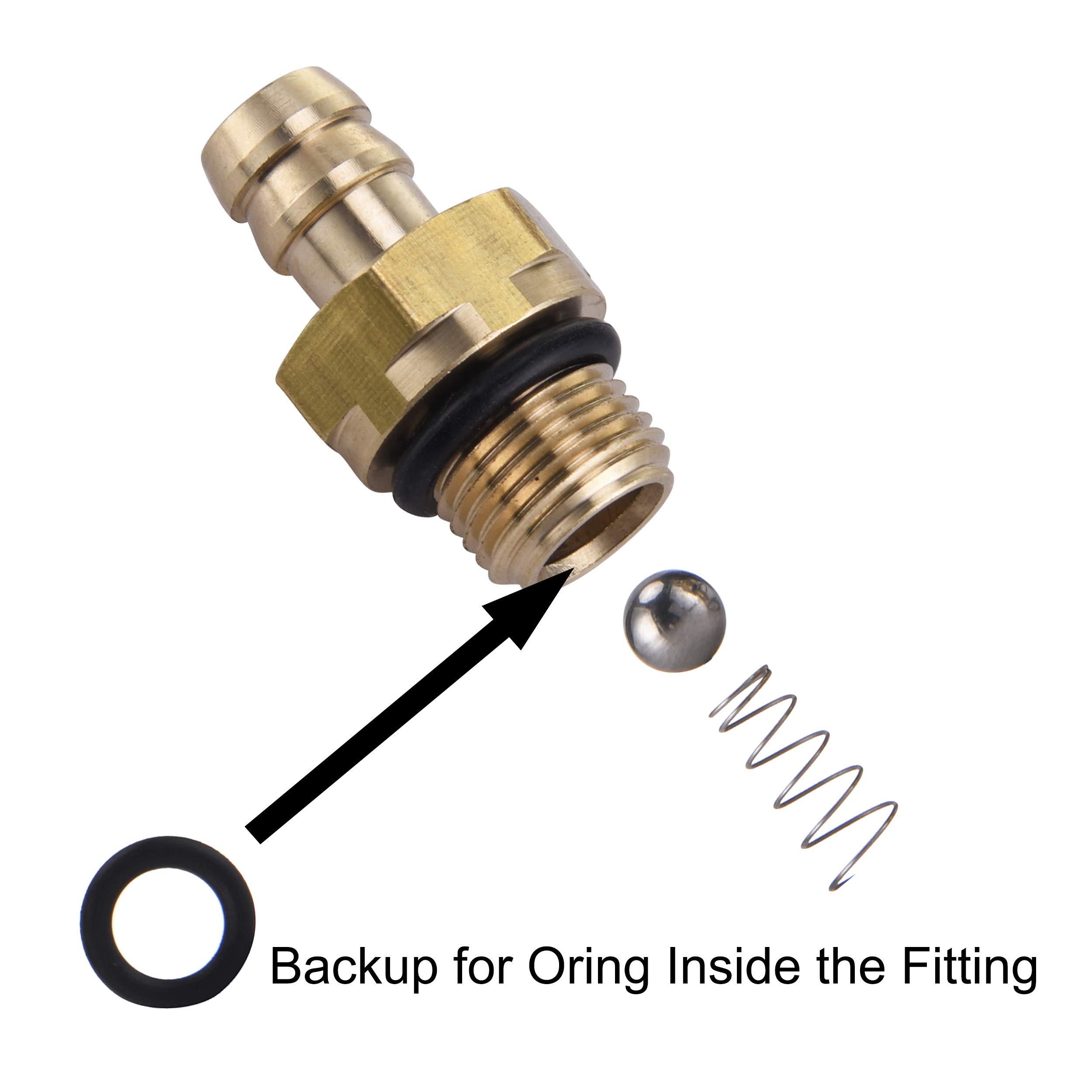

How to replace Follow soap hose to end and you'll find injector. Take off soap hose. Use wrench to remove old injector. Clean out any gunk or dried soap in receptacle. Make sure rubber o ring is on injector as pictured. Put ball bearing inside injector and then the spring with small end of spring against the ball bearing. Insert injector into receptacle and tighten injector with 13mm wrench. Don't overtighten, you'll break the o ring or crack white metal on pump. Put the soap hose back on.
If the part on your pressure washer part is worn-out, rusted or hard-water-deposit clogged, you can replace it with this set.

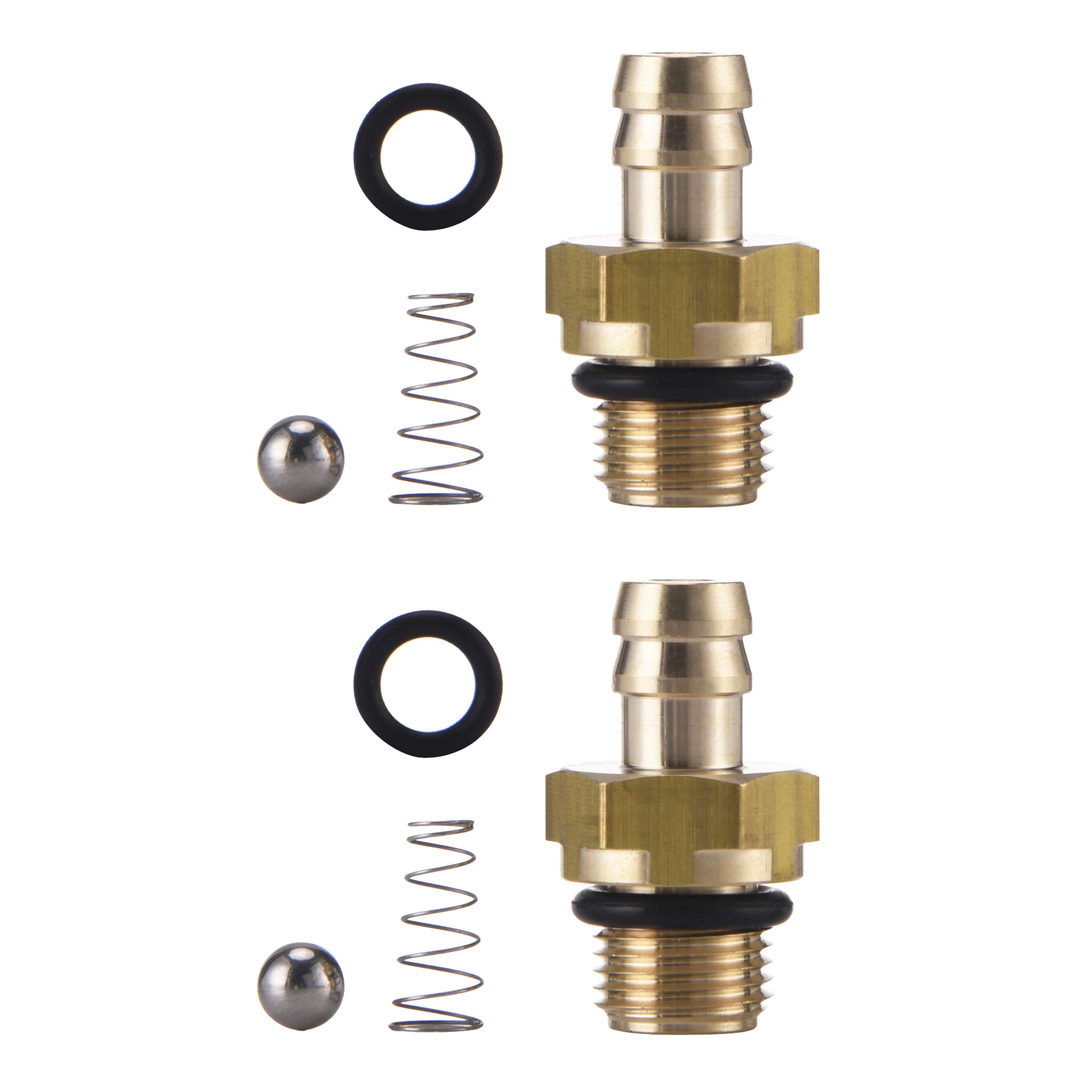

Package List Two Chemical Injector Sets, including 2 Brass Barbs, 2 Check Valve Balls, 2 Springs, 4 O-Rings.
