Paint Film Cylindrical Bending Tester - QTY-32 | Film Adhesion & Flexibility Testing Tool for Coatings | Perfect for Quality Control in Automotive, Construction & Industrial Applications

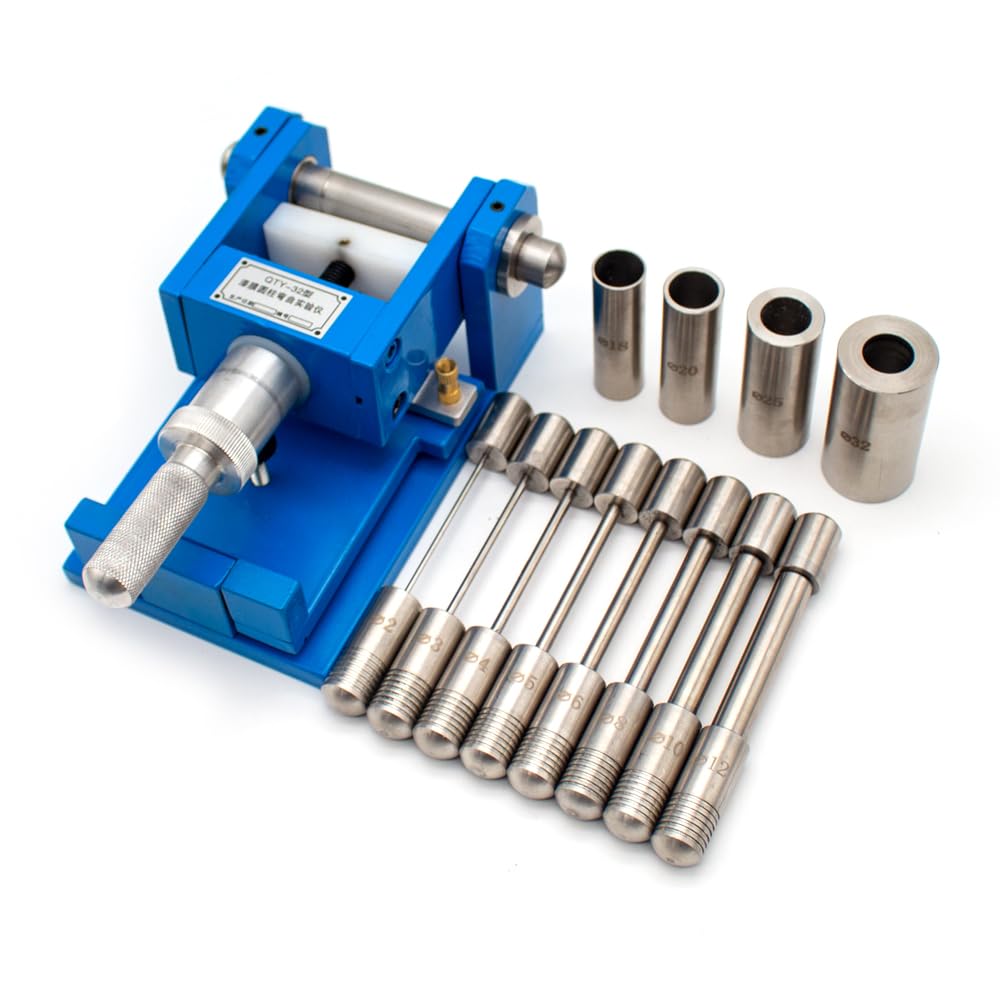

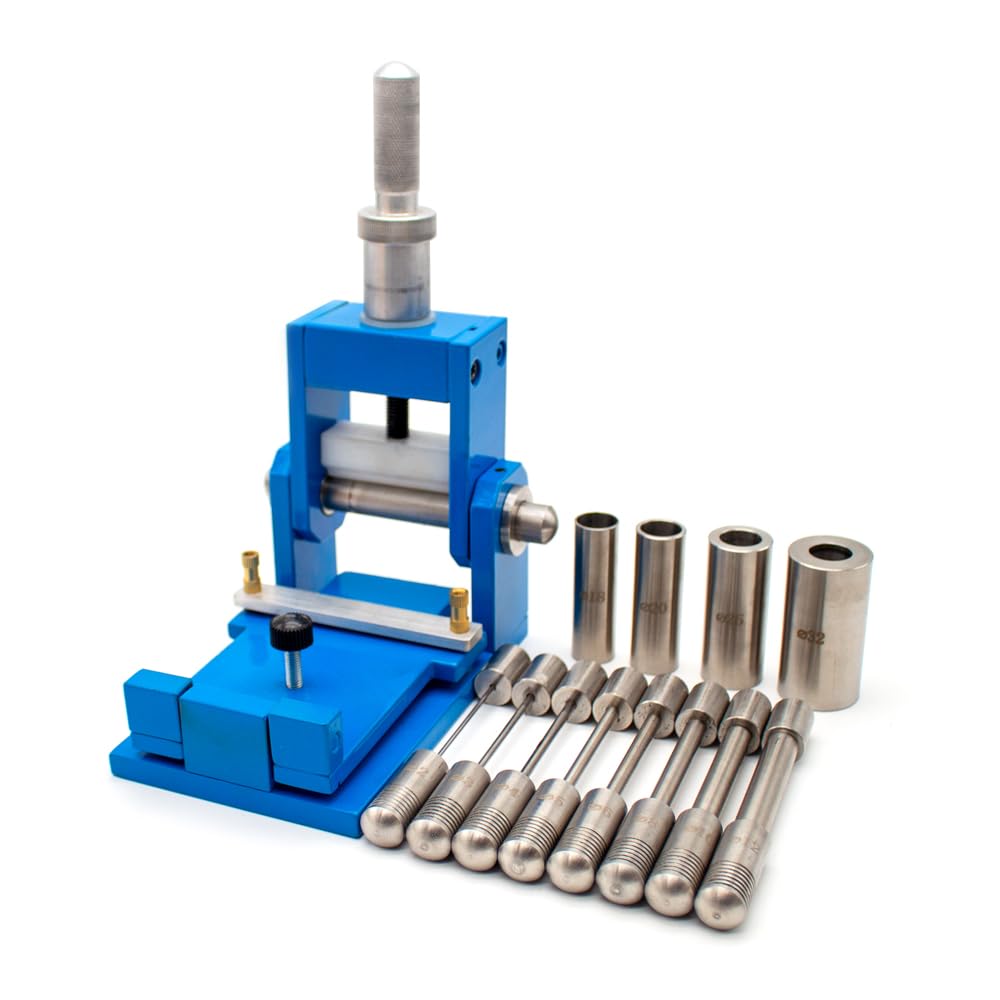

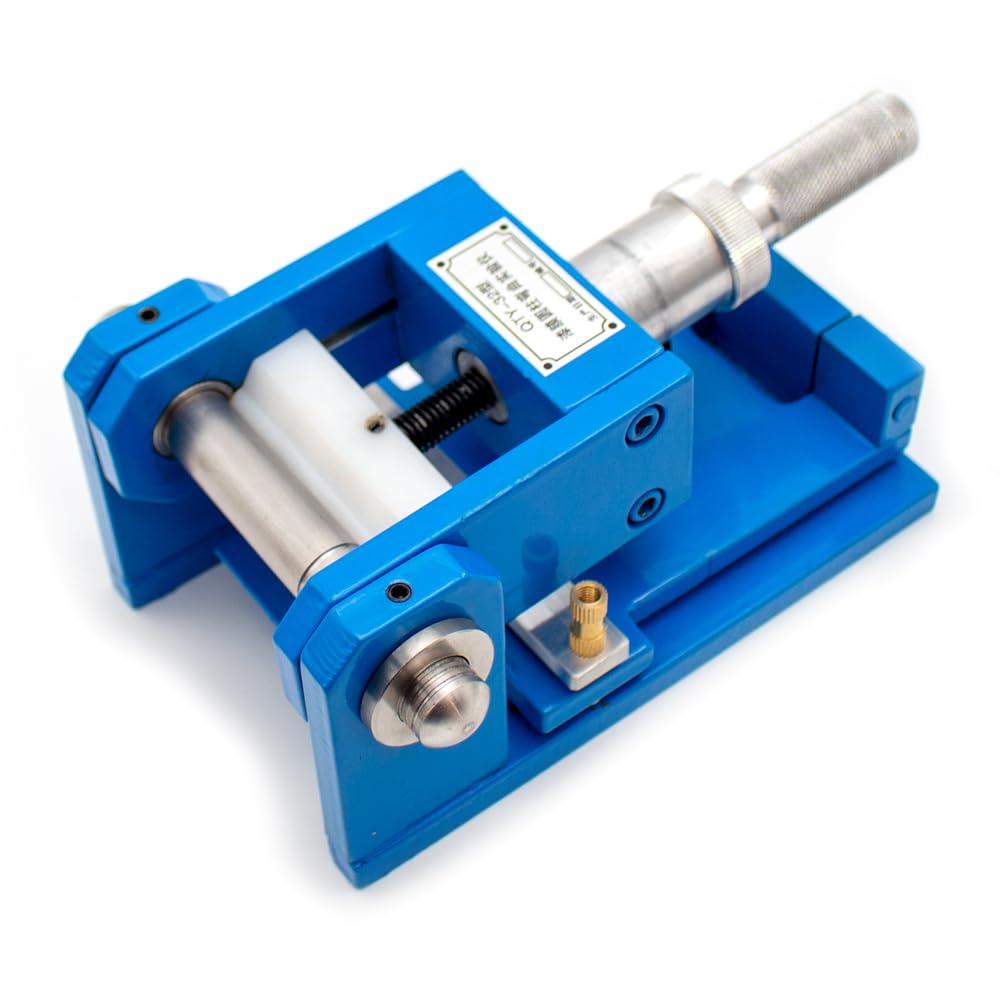

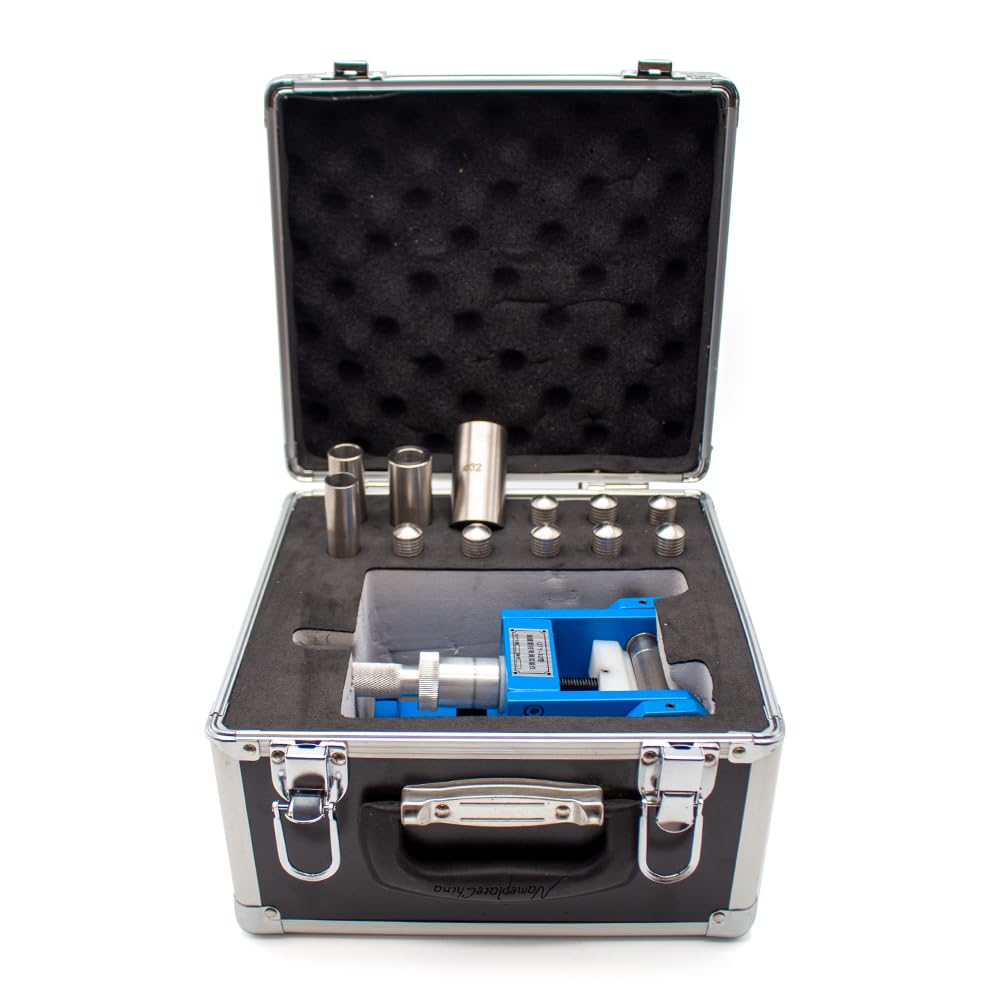

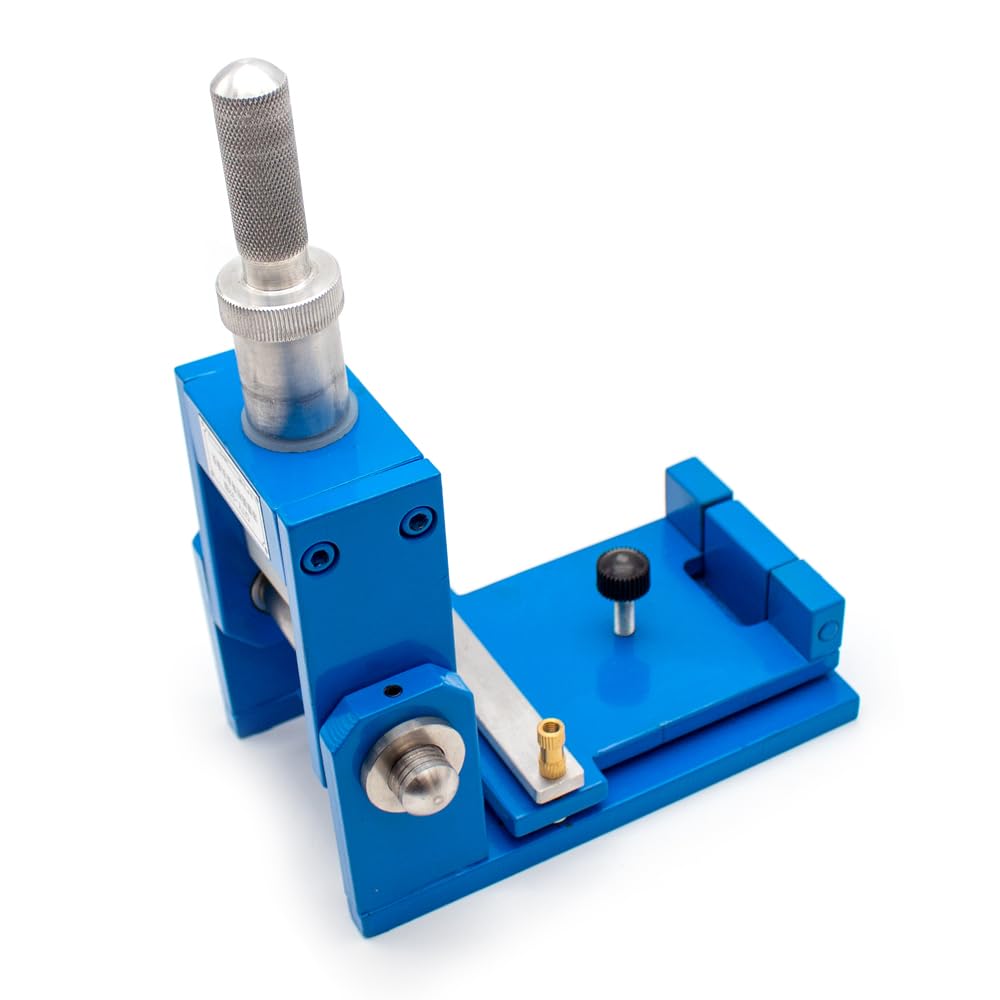

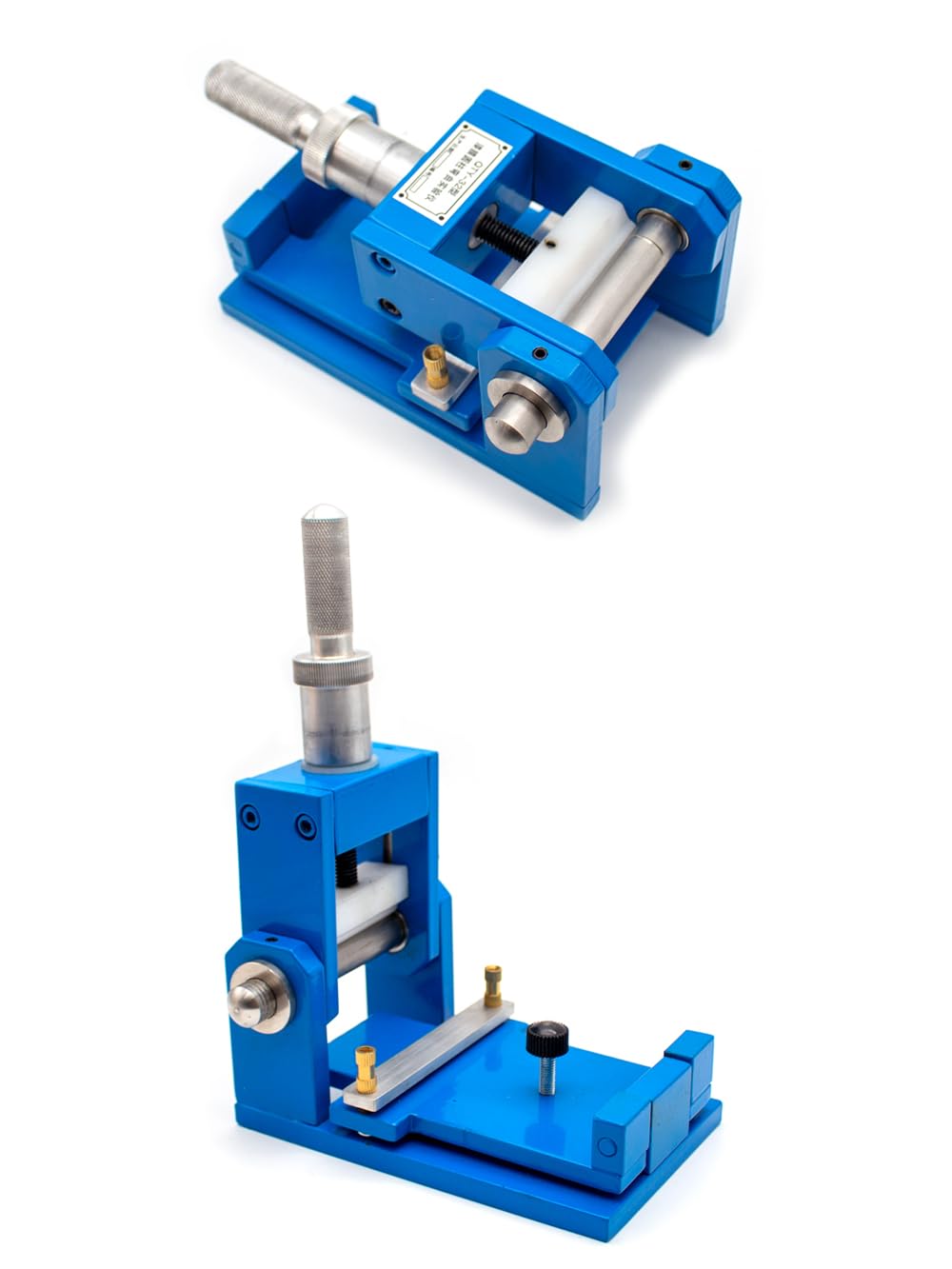

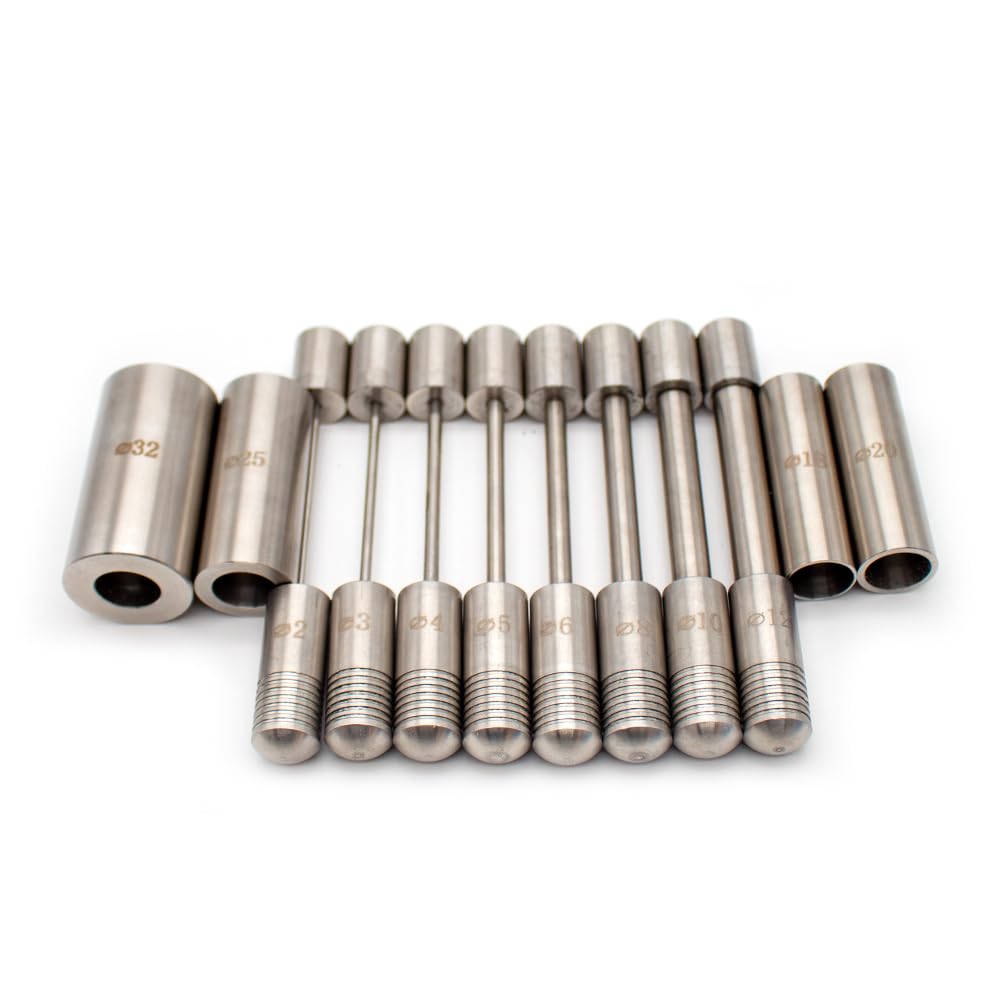

LeTkingok QTY-32 Film Cylindrical Bending Tester Paint Film Measuring Tool Cylindrical Shaft Bending Tester Description: Coated cylinder shaft bending experiment instrument was applied to the determination of paints, varnishes (including single and multilayer system) around the anti cracking performance of bending or peel from the metal base plate on the cylindrical shaft under standard conditions, the instrument conforms to the national standard GB6742-86, and according to the international standard ISO1519-1973. Parameter: 1.12 different diameter stainless steel rod: Phi 2, Phi 3, Phi 4, Phi 5, phi 6, Phi 8, Phi 10, Phi 12, Phi 16, Phi 20, Phi 25, Phi 32mm 2.Test piece thickness: 0.3 ~ 1.0mm (hard base material);0.3 ~ 5.0mm (soft base) 3.Specimen size: 12 * 5cm 4.Dimensions: 100 x 240 x 110mm (L * H * H) Package including: 1 x Film Cylindrical Bending Tester Paint Film Measuring Tool
